Brand Name : | SUPAL |
Price : | To be negotiated |
Payment Terms : | T/T, Western Union,Paypal, Alipay |
Supply Ability : | 100000000PCS |
Delivery Time : | 7-15DAYS |

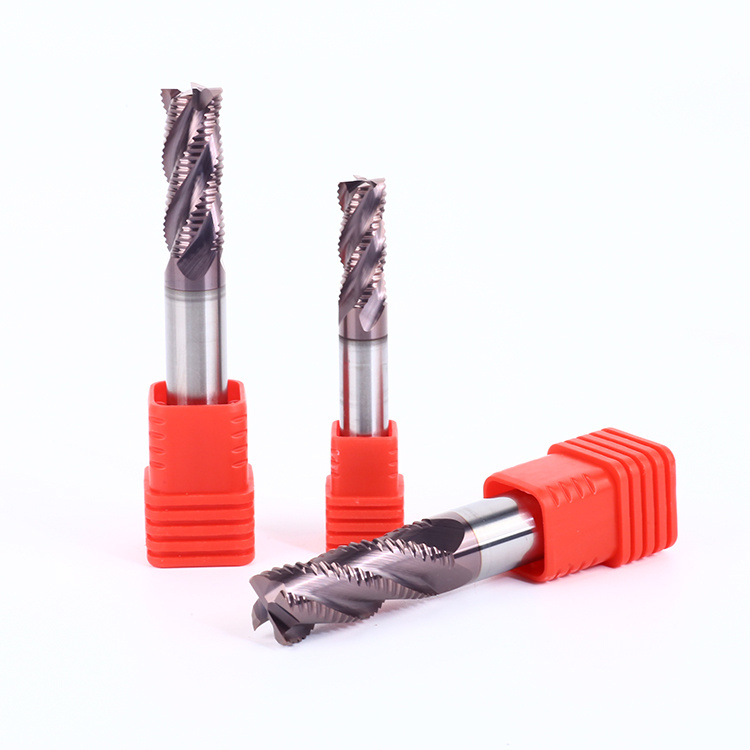

A roughing end mill is a type of cutting tool used in metalworking
to remove large amounts of material quickly. It is designed with
multiple cutting edges and a coarse pitch to allow for rapid
material removal. The roughing end mill is typically used at high
speeds and feeds to remove large amounts of material in a short
amount of time. It is commonly used in roughing operations on
steel, aluminum, and other metals. The roughing end mill is also
used for slotting, pocketing, and profiling operations. It is
available in a variety of sizes and shapes to suit different
applications.

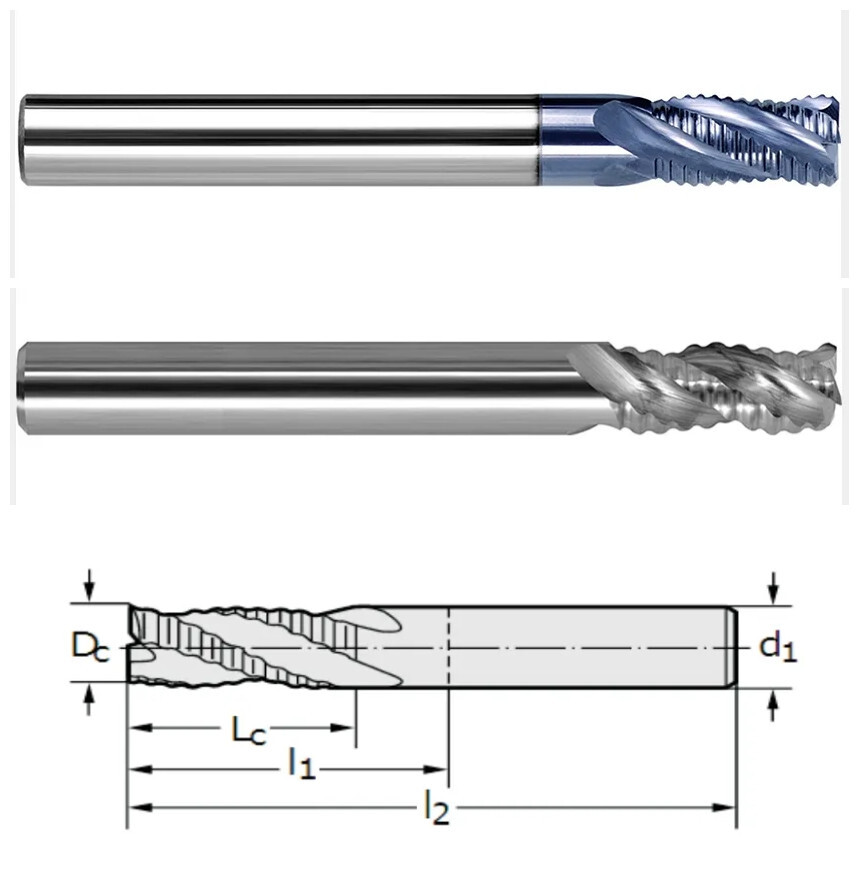

Product name | Solid Carbide Endmills Carbide 4 Flute end mill Rough Endmill tool |
Place of Origin | Jiangsu,China |
Brand name | SUPAL TOOLS |
Model | support customization |
Coating | TiAlN/AlCrN |
HRC | 70 |
Suitable for | Cast iron, carbon steel, alloy steel, non-ferrous metals, etc. |
Material | Cemented carbide |
Flutes | 3 /4/6 flutes |
Dc | 3.00-25.00 |
Solid/internal cooling | Solid |
Super Raw Material | |||||
HRC | HRA | Carbide Grade | Grain Size | Co. | Flexural Strength(MPA) |
45 | 91.8 | YG10X | 0.7μm | 10% | 3320 |
55 | 92.2 | YG10.2&WF25(Taiwan) | 0.6μm | 10% | 4000 |
60 | 92.5 | K44&k40(German) | 0.5μm | 12% | 4300 |
65 | 93.5 | H10F(Sweden) | 0.5μm | 10% | 4300 |
Super Coating | |||||||
Coating | AlTiN | AlTiSiN | TiAlN | Blue Nano | (APS) AlCrN | DLC | Diamond |
Color | Black | Copper | Dark Violet | Blue | Dark Grey | Black | Black |
Thickness | 1.5-3 | 1.5-3 | 1-3 | 2-4 | 1.5-3 | 1-3 | 2-12 |
Hardness | 3300 | 3500 | 3000 | 3200 | 3500 | 1800 | 10000 |
Frictions | 0.4 | 0.35 | 0.4 | 0.45 | 0.3 | 0.1 | 0.02-0.1 |
The Max ℃ | 900 | 1000 | 800 | 1000 | 1250 | 350 | 650 |
![]() |
