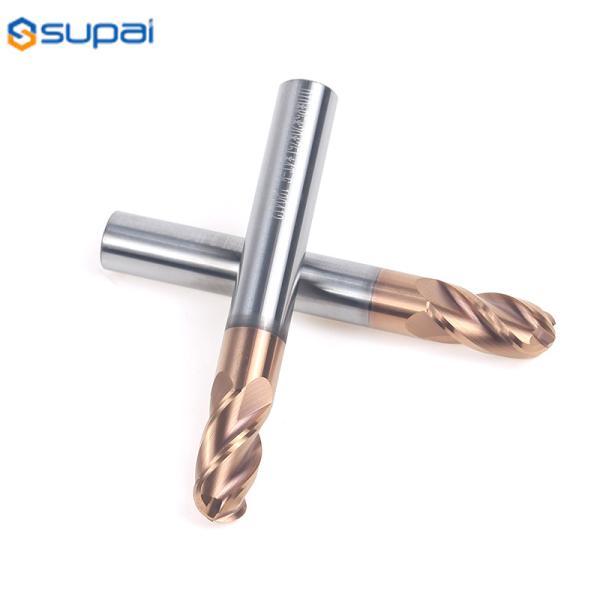

    4 Flute Carbide Ball Nose End Mill Tisin Coating For Stainless Steel

    Ask Lasest Price
    Payment Terms : T/T
    Supply Ability : 10000000PCS
    Delivery Time : 7-15Days
    Model Number : Ball Nose End Mill
    Brand Name : SUPAL
    Price : To be negotiated
    • Product Details
    • Company Profile

    4 Flute Carbide Ball Nose End Mill Tisin Coating For Stainless Steel

    4 Flute Carbide Ball Nose End Mill Tisin Coating For Stainless Steel

    Guaranteed Quality Proper Price 4Flute Solid Carbide Ball End Mill Cutters

    A ball end milling cutter is also known as a "ball nose mill". The end of this tool is ground with a full radius equal to half of the tool diameter, and the edges are center cutting. They can be single end or double end and they can be made from solid carbide or various compositions of high speed steel. They can be general purpose or high perfomance geometries. They can be used used for milling a large corner radius, grooving with a full radius, and contour or profile milling. The smaller diameters can be used for engraving. They are available in a wide variety of standard sizes and lengths.

    Tungsten Cemented Carbide Grade:

    Grade ISO Code

    Chemical Component

    (%)

    		 Grain size um

    Physial Mechanical Properties

    (≥)
    WC Co Others Density g/cm3 Hardness (HRA) T.R.S N/mm2
    D10UF K05-K15 93 6 1 0.6 14.70 93.0 2600
    D30UF K20-K30 89 10 1 0.6 14.50 92.0 3800
    D30SF K20-K30 89 10 1 0.5 14.40 92.5 4000
    D40SF K40 87 12 1 0.4 14.30 92.5 4200
    DB10X K20-K30 89 10 1 0.6 14.50 91.5 3800
    DP12X K30-K40 87 12 1 0.6 14.15 91.0 3300
    DP13X K40 86 13 1 0.8 14.10 90.5 4400
    YG6 K05-K10 93 6 0 1.2 14.95 91.0 2600
    YG6X K10 93 6 0 1.0 14.95 92.0 2500
    YG8 K20-K30 92 8 0 1.2 14.70 90.0 2800
    YG10X K30-K40 89 10 1 0.8 14.50 91.0 3500
    YG15 K40 85 15 0 1.2 14.00 87.5 4500
    YG25 -- 75 25 0 1.2 13.15 82.5 4800

    4 Flute Carbide Ball Nose End Mill Tisin Coating For Stainless Steel

    Specification
    (Unit:mm)
    Radius of Ball Nose(R)
    Flute Diameter(d)
    Flute Length (l)
    Shank Diameter(D)
    Overall Length(L)
    Flutrs(Z)
    R0.5*2*D4*50*2T
    0.5
    1
    2
    4/6
    50
    2/4
    R0.75*3*D4*50*2T
    0.75
    1.5
    3
    4/6
    50
    2/4
    R1*4*D4*50*2T
    1
    2
    4
    4/6
    50
    2/4
    R1.25*5*D4*50*2T
    1.25
    2.5
    5
    4/6
    50
    2/4
    R1.5*6*D3*50*2T
    1.5
    3
    6
    3/4/6
    50
    2/4
    R1.75*7*D4*50*2T
    1.75
    3.5
    7
    4/6
    50
    2/4
    R2*8*50*2T
    2
    4
    8
    4/6
    50
    2/4
    R2*8*75*2T
    2
    4
    8
    4
    75
    2/4
    R2*8*100*2T
    2
    4
    8
    4
    100
    2/4
    R2.5*10*D5*50*2T
    2.5
    5
    10
    5/6
    50
    2/4
    R2.5*10*75*2T
    2.5
    5
    10
    5/6
    75
    2/4
    R2.5*10*D5*100*2T
    2.5
    5
    10
    5/6
    100
    2/4
    R3*12*50*2T
    3
    6
    12
    6
    50
    2/4
    R3*12*75*2T
    3
    6
    12
    6
    75
    2/4
    R3*12*100*2T
    3
    6
    12
    6
    100
    2/4
    R3*12*120*2T
    3
    6
    12
    6
    120
    2/4
    R3*12*150*2T
    3
    6
    12
    6
    150
    2/4
    R3.5*15*D8*60*2T
    3.5
    7
    15
    8
    60
    2/4
    R4*16*60*2T
    4
    8
    16
    8
    75
    2/4
    R4*16*75*2T
    4
    8
    16
    8
    75
    2/4
    R4*16*100*2T
    4
    8
    16
    8
    100
    2/4
    R4*16*120*2T
    4
    8
    16
    8
    120
    2/4
    R4*16*150*2T
    4
    8
    16
    8
    150
    2/4
    R4.5*18*D10*75*2T
    4.5
    9
    18
    10
    75
    2/4
    R5*20*75*2T
    5
    10
    20
    10
    75
    2/4
    R5*20*100*2T
    5
    10
    20
    10
    100
    2/4
    R5*20*120*2T
    5
    10
    20
    10
    120
    2/4
    R5*20*150*2T
    5
    10
    20
    10
    150
    2/4
    R5*30*180*2T
    5
    10
    30
    10
    180
    2/4
    R5*30*200*2T
    5
    10
    30
    10
    200
    2/4
    R5.5*20*D12*75*2T
    5.5
    11
    20
    12
    75
    2/4
    R5.5*20*D12*100*2T
    5.5
    11
    20
    12
    100
    2/4
    R6*24*75*2T
    6
    12
    24
    12
    75
    2/4
    R6*24*100*2T
    6
    12
    24
    12
    100
    2/4
    R6*24*120*2T
    6
    12
    24
    12
    120
    2/4
    R6*24*150*2T
    6
    12
    24
    12
    150
    2/4
    R6*24*180*2T
    6
    12
    24
    12
    180
    2/4
    R6*24*200*2T
    6
    12
    24
    12
    200
    2/4
    R7*30*100*2T
    7
    14
    30
    14
    100
    2/4
    R7*30*120*2T
    7
    14
    30
    14
    120
    2/4
    R7*30*150*2T
    7
    14
    30
    14
    150
    2/4
    R7*30*180*2T
    7
    14
    30
    14
    180
    2/4
    R7*30*200*2T
    7
    14
    30
    14
    200
    2/4
    R7.5*30*D16*100*2T
    7.5
    15
    30
    16
    100
    2/4
    R8*30*100*2T
    8
    16
    30
    16
    100
    2/4
    R8*30*120*2T
    8
    16
    30
    16
    120
    2/4
    R8*30*150*2T
    8
    16
    30
    16
    150
    2/4
    R8*30*180*2T
    8
    16
    30
    16
    180
    2/4
    R8*30*200*2T
    8
    16
    30
    16
    200
    2/4
    R8.5*30*D18*100*2T
    8.5
    17
    30
    18
    100
    2/4
    R9*30*100*2T
    9
    18
    30
    18
    100
    2/4
    R9*30*120*2T
    9
    18
    30
    18
    120
    2/4
    R9*30*150*2T
    9
    18
    30
    18
    150
    2/4
    R9*30*180*2T
    9
    18
    30
    18
    180
    2/4
    R9*30*200*2T
    9
    18
    30
    18
    200
    2/4
    R9.5*30*D20*100*2T
    9.5
    19
    30
    20
    100
    2/4
    R10*30*100*2T
    10
    20
    30
    20
    100
    2/4
    R10*30*120*2T
    10
    20
    30
    20
    120
    2/4
    R10*30*150*2T
    10
    20
    30
    20
    150
    2/4
    R10*30*180*2T
    10
    20
    30
    20
    180
    2/4
    R10*30*200*2T
    10
    20
    30
    20
    200
    2/4

    Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.

    4 Flute Carbide Ball Nose End Mill Tisin Coating For Stainless Steel

    4 Flute Carbide Ball Nose End Mill Tisin Coating For Stainless Steel

    Product Tags:

    4 Flute Ball Nose End Mill



    Tisin Coating Ball Nose End Mill



    Dia 20mm Ball Nose End Mill
