    2 Flute Cutting HRC55 2mm-6mm Ball Nose End Mill / Tungsten Steel Spiral Milling

    Ask Lasest Price
    Brand Name : SUPAL
    Payment Terms : T/T
    Supply Ability : 10000000PCS
    Delivery Time : 7-15Days
    Price : To be negotiated
    Model Number : OEM
    • Product Details
    • Company Profile

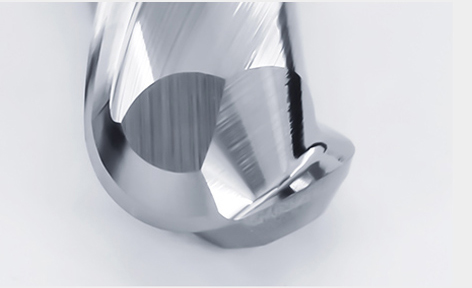

    2 Flute Cutting HRC55 2mm-6mm Ball Nose End Mill / Tungsten Steel Spiral Milling


    Tungsten steel base material is strong and durable

    Use high quality 0.2u-0.6u ultrafine particle tungsten steel bar

    Strong wear resistance High toughness High hardness

    2 Flute Cutting HRC55 2mm-6mm Ball Nose End Mill / Tungsten Steel Spiral Milling

    Grinding process

    Unique chip flute prevents chipping

    Unique chip flutes prevent chipping and provide excellent performance even in groove and cavity machining
    2 Flute Cutting HRC55 2mm-6mm Ball Nose End Mill / Tungsten Steel Spiral Milling

    Wide processing range, saving processing costs

    The ball milling cutter is mainly for profiling, semi-finishing and finishing. It is recommended to cut materials within HRC55

    3

    Face machining Side machining Slot machining U groove machining Surface machining

    01Front angle
    Large cor diameter
    Adopting the suitable design of the front angle, the cutting edge strength and sharpness are taken into account. At the same time, the large core diameter is used to enhance the tool rigidity and make the cutting and chip removal stable.

    2 Flute Cutting HRC55 2mm-6mm Ball Nose End Mill / Tungsten Steel Spiral Milling

    02 Edge belt
    Double edge belt design
    Design of 35 °helical angle with double blade to reduce product burr when milling cutter is more wear-resistant

    2 Flute Cutting HRC55 2mm-6mm Ball Nose End Mill / Tungsten Steel Spiral Milling

    03 Chip removal
    Big chip space
    Large capacity chip discharge has strong cutting, discharge chip smooth, can achieve high efficiency processing.

    2 Flute Cutting HRC55 2mm-6mm Ball Nose End Mill / Tungsten Steel Spiral Milling

    04 Passivated
    Passivating deal with
    The edge is passivated, magnifying 200 times without slight defect, processing is not easy to have burrs, not easy to crack; the edge is not passivated, the edge is easy to crack, collapse phenomenon.the edge isn't flat.

    05 Chamfer
    Chamfer easy to operate
    Handle chamfering layout is easier to fit.

    2 Flute Cutting HRC55 2mm-6mm Ball Nose End Mill / Tungsten Steel Spiral Milling

    NumberModelR radiusBlade diameter
    D1
    Shank diameter
    D
    Blade number
    T
    Blade length
    L1
    Total length
    L
    1
    R0.5X4DX2TX50L0.5142250
    2
    R0.75X4DX2TX50L0.751.542350
    3
    R1.0X4DX2TX50L1242450
    4
    R1.25X4DX2TX50L1.252.542550
    5
    R1.5X4DX2TX50L1.5342650
    6
    R1.75X4DX2TX50L1.753.542750
    7
    R2.0X4DX2TX50L2442850
    8
    R2.5X6DX2TX50L2.55621050
    9
    R3.0X6DX2TX50L36621250
    10
    R4.0X8DX2TX60L48821660
    11
    R5.0X10DX2TX75L5101022075
    12
    R6.0X12DX2TX75L6121222475
    13
    R8.0X16DX2TX100L81616230100

    Conventional cutting parameters

    Cutting materialAluminumAluminumAluminum alloy
    Si,Mg-Si
    Aluminum alloy
    Si,Mg-Si
    Aluminum alloy MgAluminum alloy MgAluminum
    alloyZn-Mg
    Aluminum
    alloyZn-Mg
    Aluminum alloys CastingAluminum alloys CastingCopperAlloysCopperAlloys
    Edge diameterrotation ratefeedrotation ratefeedrotation ratefeedfrotation ratefeedrotation ratefeedrotation ratefeed
    3320008005300200130040027000400160005007900200
    5192001000320025080005001600050096006004700240
    6160001000265025065005001350050080006003900240
    8120001000200030050006001000060060007002900240
    109600120016003004000600800060048007002300240
    128000120013003503300700660070040008001900280
    166000120010003502500700500070030008001400280
    20480012008003502000700400070024008001100280
    Side Milling ap1.5D1.5D1.5D1.5D1.5D1.5D1.5D1.5D1.5D1.5D1.5D1.5D
    Side Milling ae0.2D0.2D0.2D0.2D0.2D0.2D0.2D0.2D0.2D0.2D0.2D0.2D
    Grooving ap1.0D1.0D1.0D1.0D1.0D1.0D1.0D1.0D1.0D1.0D0.5D0.5D
    D.Dia.of mill
    Groocing Side milling
    1.Use in wet condition
    2.When using low speed machines,use maximum speed and adjust the feed rate.
    3.adjust milling cindition when unusual vibration.different sound occur by cutting.
