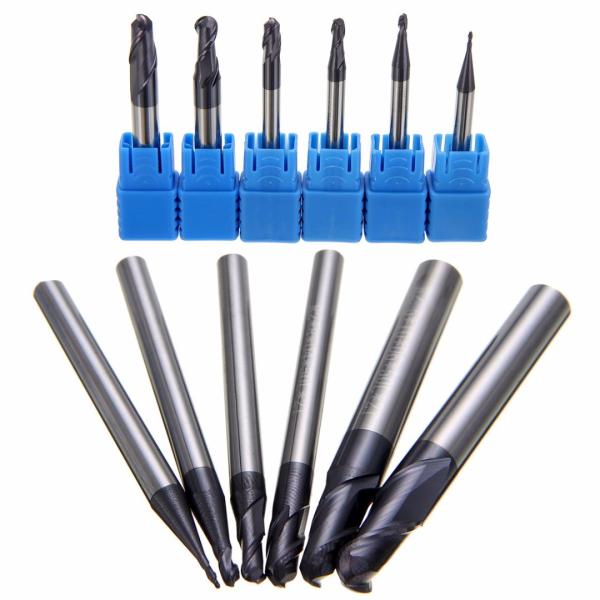

AlTiN Coating Ball Nose Long End Mill Hardness 50 55 60 65 , R3*50
R4 R5 R7 14 mm AOL 150 mm
Description:
Micro Grain Szie 0.6-0.8um, Wc carbide rod with high tenacity,with
high quality TiAlN coating,getting long tool life,from roughing to
finishing processing,reduce time of changing cutters,improving
efficency of machine,saving time of making moulds.Suggest to
process iron and steel upto HRC50,Middle-low speed.
Carbide Rod:Wc:90%,Co:10%,TRS:3800N/mm2, Grain Size:0.6-0.8um
Applications:
Fit for milling quenching and tempered steel.stainless steel.nickel
alloy and Titanium alloy,Cast iron,enhanced composited material
with fiberglass,Also fit for milling copper.
Description:
Ultra-Fine Grain Szie 0.5-0.6um, Wc carbide rod with high
tenacity,with high quality TiAlN coating,getting long tool
life,from roughing to finishing processing,reduce time of changing
cutters,improving efficency of machine,saving time of making
moulds.Suggest to process iron and steel upto HRC55,Middle-High
speed.
Carbide Rod:Wc:88%,Co:12%,TRS:4000N/mm2, Grain Size:0.5-0.6um
| Order No | Cutting Dia | Shank | Cutting Length | AOL |
| d | D | l | L |
| R3.0×12×6D×100L×2F | 6 | 6 | 12 | 100 |
| R3.0×12×6D×150L×2F | 6 | 6 | 12 | 150 |
| R4.0×16×8D×75L×2F | 8 | 8 | 16 | 75 |
| R4.0×16×8D×100L×2F | 8 | 8 | 16 | 100 |
| R4.0×16×8D×150L×2F | 8 | 8 | 16 | 150 |
| R5.0×20×10D×100L×2F | 10 | 10 | 20 | 100 |
| R5.0×20×10D×150L×2F | 10 | 10 | 20 | 150 |
| R6.0×24×12D×100L×2F | 12 | 12 | 24 | 100 |
| R6.0×24×12D×150L×2F | 12 | 12 | 24 | 150 |
| R7.0×28×14D×150L×2F | 14 | 14 | 28 | 150 |
| R8.0×32×16D×150L×2F | 16 | 16 | 32 | 150 |
| R10×40×20D×150L×2F | 20 | 20 | 40 | 150 |
Competitive Advantage:
Good and Stable Quality.
New Coating TiSiAlN Improve the performance in high hardness
material and stainless steel.
Competitive price.
Help the agent to get the get more large market in the quality
products.
