    High Performance Carbide Drill With Coolant Hole Oil Rig Twist Drill Bits Internal Drilling Cutter For Woodworking

    Ask Lasest Price
    Brand Name : SUPAL
    Payment Terms : T/T
    Supply Ability : 10000000PCS
    Delivery Time : 7-15Days
    Price : To be negotiated
    Model Number : OEM
    • Product Details
    • Company Profile

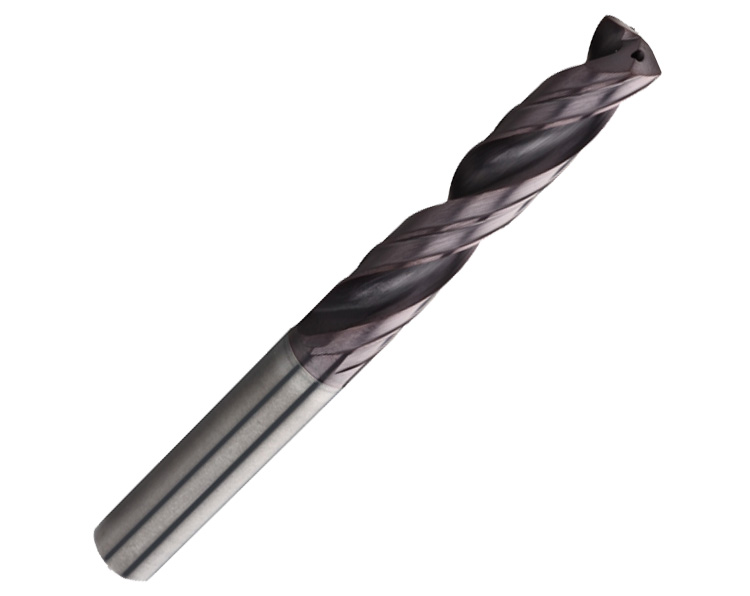

    High Performance Carbide Drill With Coolant Hole Oil Rig Twist Drill Bits Internal Drilling Cutter For Woodworking

    High Performance Carbide Drills With Coolant Hole Oil Rig Twist Drill Bits Internal Drilling Cutter for woodworking


    High peformance Carbide Oil hole drill

    Size:3D/5D


    Top angle:118degree-140degree


    With internal coolant hole


    Material: Kennametal


    Grain Size:0.5um


    Co:12 %


    Flexural strength:4300N/mm2


    For drilling hole , high preformance , high speed , with TiAlN coating getting long tool life

    HRCHRC45 , HRC55 , HRC60 , HRC65
    MaterialYG10X , YL10.2 &WF25 , K44 &K40 , H10F
    MG Grain size0.7um , 0.6um , 0.5um , 0.5um
    CO10% , 10% , 12% , 10%
    Flexural strength3320N/mm2 , 4000N/mm2 , 4300N/mm2 , 4300N/mm2
    Coating TypeAlTin , Tialn , TiSin , Naco
    Hardness(HV)3200 , 2800 , 3600 , 42(GPA)
    Thickness(UM)2.5-3 , 2.5-3 , 3 , 3
    Oxidation Temp.(℃)900 , 800 , 1000 , 1200
    Friction Coefficient0.3 , 0.3 , 0.45 , 0.4
    ColorBlack , Violet , Copper , Blue
    ApplicationMachinery Processing , Aeropace , Automobile , Mould , Plastic and other fields

    Shank dia (mm)Flute dia (mm)Flute Length (mm)O.A.L(mm)
    3xD6M 3.42062
    3xD6M. 3.52062
    3xD6M. 3.82466
    3xD6M. 42466
    3xD6M. 4.22466
    3xD6M. 4.32466
    3xD6M. 4.52466
    3xD6M. 4.82866
    3xD6M. 52866
    3xD6M 5.12866
    3xD6M. 5.22866
    3xD6M. 5.52866
    3xD6M. 5.82866
    3xD6M. 62866
    3xD8M. 6.13479
    3xD8M 6.23479
    3xD8M. 6.53479
    3xD8M. 6.83479
    3xD8M. 6.93479
    3xD8M. 73479
    3xD8M. 7.4179
    3xD8M 7.54179
    3xD8M 7.84179
    3xD8M. 84179
    3xD10M. 8.14789
    3xD10M. 8.24789
    3xD10M 8.54789
    3xD10M. 8.64789
    3xD10M 8.84789
    3xD10M. 94789
    3xD10M. 9.24789
    3xD10M. 9.54789
    3xD10M. 9.84789
    3xD10MM.104789
    3xD12MM.10.255102
    3xD12MM.10.355102
    3xD12MM.10.555102
    3xD12MM.10.655102
    3xD12MM.10.855102
    3xD12MM.1155102
    3xD12MM.11.255102
    3xD12MM.11.555102
    3xD12MM.11.855102
    3xD12MM.1255102
    3xD14MM.12.260107
    3xD14MM.12.560107
    3xD14MM.1360107
    3xD14MM.13.560107
    3xD14MM.1460107
    3xD16MM.14.265115
    3xD16MM.14.565115
    3xD16MM.1565115
    3xD16MM.15.565115
    3xD16MM.1665115
