    Tungsten CNC Micro Grain Carbide Spot Drill For Aluminium Machining Lathe Work

    Ask Lasest Price
    Brand Name : SUPAL
    Payment Terms : T/T
    Supply Ability : 10000000PCS
    Delivery Time : 7-15Days
    Price : To be negotiated
    Model Number : Drill Bit Series
    • Product Details
    • Company Profile

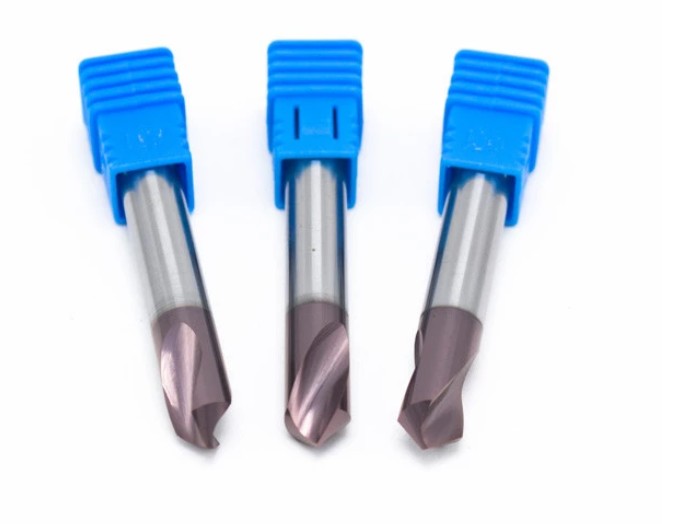

    Tungsten CNC Micro Grain Carbide Spot Drill For Aluminium Machining Lathe Work

    Tungsten Super Hard CNC Micro Grain Carbide Spot Drill For Aluminium Machining Lathe Work


    Features & Benefits:
    1, Suitable for Mould steel, Cast iron, Aluminum alloy, Copper, and Alloy steel processing.

    2, Mainly for fixing point and chamfering before drilling the hole for the workpieces.

    We can supply standard and non-standard sizes tools as per your requirements.

    If you have any needs or questions, please kindly contact us.


    Order No.Outside Diameter(D)Shank Diameter(d)Flute Length(l)Overall Length(L)
    2D×2×4×50L22450
    3D×3×6×50L33650
    4D×4×8×50L44850
    5D×5×10×50L551050
    6D×6×12×50L661250
    8D×8×16×50L881650
    10D×10×20×75L10102075
    12D×12×20×75L12122075
    16D×16×25×100L161625100
    20D×20×25×100L202025100
    4D×4×8×100L448100
    5D×5×8×100L5510100
    6D×6×12×100L6612100
    8D×8×16×100L8816100
    10D×10×20×100L101020100
    12D×12×20×100L121220100

    Super raw material


    HRC45HRC55HRC60HRC65
    YG10XYG10.2 &WF25(Taiwan)K44 & K40 (German)H10F (Sweden)

    Grain Size:0.7um
    Co:10 %
    Flexural strength:

    3320N/mm2

    Grain Size:0.6um
    Co:10 %
    Flexural strength:

    4000N/mm2

    Grain Size:0.5um
    Co:12 %
    Flexural strength:

    4300N/mm2

    Grain Size:0.5um
    Co:10 %
    Flexural strength:

    4300N/mm2


    Super coating


    ItemAlTiNTiAINTiSiNnACo
    Hardness(HV)32002800360042(GPA)
    Thickness(UM)2.5-32.5-333
    Oxidation Temp(°)90080010001200
    Friction Coeffient0.30.30.450.4
    ColorBlackVioletCopperBlue

    Advanced CNC grinding machines
    With 5-Axis automatic CNC grinding machines from abroad

    4 Michael Deckel from Germany
    3 ANCA from Australia

    1 TTB from Australia
    Top Work from Taiwan
    Guarantee high precision and good performance.

    Strict quality checking

    Check each piece.Guarantee the tolerance -0.02mm

    Exact helix angle and finished surface

    Goods pass SGS and ISO9001


    Welcome to be our agents, OEM is also available
    Customized: It's available according to your drawings or samples
    If you have any interest, please contact me at any time
