1, Super raw material
Kennametal Carbide from USA, Carbide from Sweden, CB Carbide from Taiwan, Zhuzhou Carbide from Hunan province.
| | HRC45 | HRC55 | HRC60 | HRC65 | | YG10X | YG10.2 &WF25 | Germany K44 & K40 | H10F | Grain Size:0.7um Co:10 % Flexural strength:3320N/mm2 | Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2 | Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2 | Grain Size:0.5um Co:10 % Flexural strength:4300N/mm2 |
| | | |
2, Reasonable price
Pleasure to offer you more discount according to your quantity.
More quantity, more discount.
3, Application and usage
Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould
steel, Die steel, Stainless steel, Plastic, Arcylic, etc.
Applicated for Aerospace, transportation, Medical equipment,
military manufacturing, mould development, apparatus and
instrument, etc.
4, Super coating
| Item | AlTiN | TiAIN | TiSiN | nACo |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
| model | flute diameter | flute length | shank diameter | overall length | number of flute | material |
| ball nose | 2 | 4 | 4 | 50 | 2/4 | HRC45-HRC50/HRC60 |
| ball nose | 4 | 8 | 4 | 50 | 2/4 | HRC45-HRC50/HRC60 |
| ball nose | 6 | 12 | 6 | 50 | 2/4 | HRC45-HRC50/HRC60 |
| ball nose | 8 | 16 | 8 | 60 | 2/4 | HRC45-HRC50/HRC60 |
| ball nose | 10 | 20 | 10 | 75 | 2/4 | HRC45-HRC50/HRC60 |
| ball nose | 12 | 25 | 12 | 75 | 2/4 | HRC45-HRC50/HRC60 |
| ball nose | 14 | 30 | 14 | 100 | 2/4 | HRC45-HRC50/HRC60 |
| ball nose | 16 | 30 | 16 | 100 | 2/4 | HRC45-HRC50/HRC60 |
| ball nose | 18 | 30 | 18 | 100 | 2/4 | HRC45-HRC50/HRC60 |

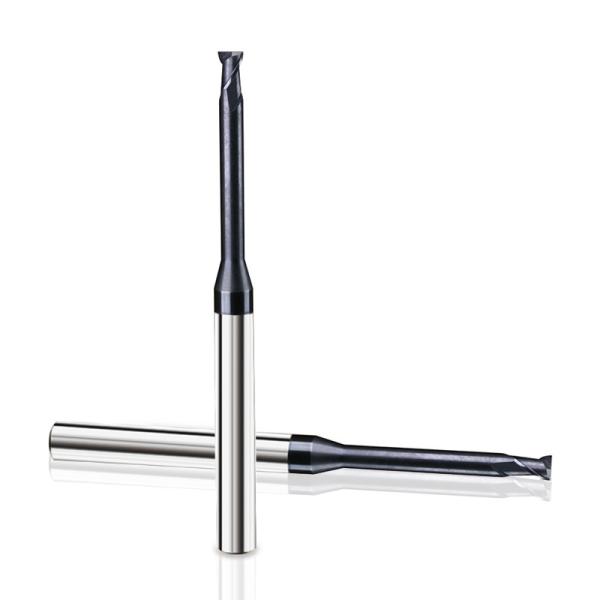

Tungsten Steel carbide long neck ball nose milling cutter solid end
mill 100% raw material to guarantee the milling cutter high quality Super coating to improve the milling cutter’s life |
|
| Advanced CNC grinding machines and test instrument guarantee
milling cutter high precision |
|
Features you should know
1.Designed to machine tool steel,alloy steel,mold steel,and other
high hardened materials;
2.Suitable for aluminum,aluminum alloy,copper&non-ferrous
materials;
3.Designed for HRC45-55 and HRC60;
4.Altin coating for high wear resistance;
5.High quality with reasonable price;
6.Rapid delivery;
7.Altin/sin/dlc coating;
8.Customized requirements.
Our services
1. Customers send detailed inquiry to us by email;
2.We reply with price, specifications, packing, photos, and other
details;
3. Both of us agree the price and confirm the details;
4.We write the proforma invoice and send to customers;
5.Customers make deposit;
6.We make mass production samples;
7.We send mass product samples or send photos to customers for
approval;
8.Customers confirm the mass production samples;
9.We start mass production.(we have huge stock for most standard
end mills);
10. We show ready products' photos or customers inspect on site;
11.Customers make balance payment;
12.Delivery is arranged. Feedback from customers for better work in
future.
(We also do OEM end mills and other coating end milling cutters as
you wish)
