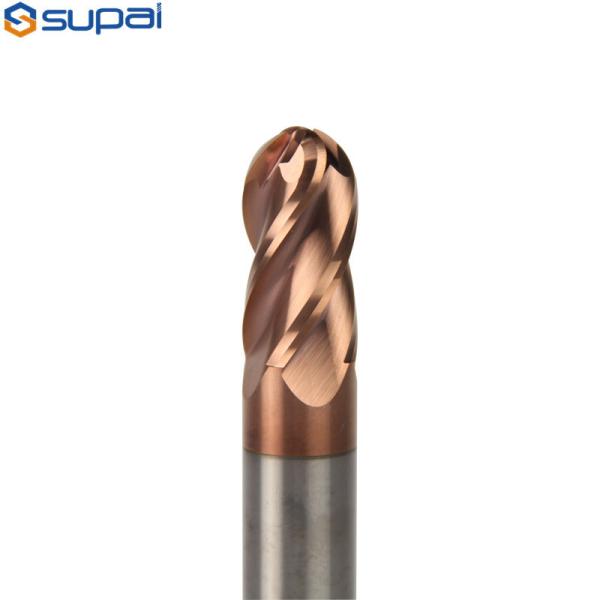

    High Precision Tungsten Carbide Ball Nose End Mill 4 Flute HRC55 Milling Tools

    Ask Lasest Price
    Brand Name : SUPAL
    Payment Terms : T/T
    Supply Ability : 10000000PCS
    Delivery Time : 7-15Days
    Model Number : OEM
    Price : To be negotiated
    • Product Details
    • Company Profile

    High Precision Tungsten Carbide Ball Nose End Mill 4 Flute HRC55 Milling Tools

    High Precision Tungsten Carbide Ball Nose End Mill 4 Flute HRC55 Milling Tools

    1. Fully enables running at rough machining parameters, resulting in finish surface quality.
    2. Excellent performance in machining titanium, Hard steel and high temperature alloys.
    3. The coating provides longer tool-life or increased cutting-values.
    4. Suitable for all types of steel or metal.

    Product Name
    tungsten Solid carbide straight shank 4 flute ball nose end mill
    Material
    tungsten carbide
    Coating
    AITIN Coating
    Standard
    ISO
    HRC
    45
    OEM
    Supply
    Machining
    Carbon Steel/Mould steel /Stainless steel

    Super Raw Material

    Item Grade
    HRC45
    (YG10X )
    HRC55
    (YL10.2 & WF25)
    HRC60
    (Germany K44 &K40)
    HRC65
    ( H10F)
    Details
    Grain size 0.7um
    Co10%
    Flexural strength
    3320N/mm2
    Grain size 0.6um
    Co10%
    Flexural strength 4000N/mm2
    Grain size 0.5um
    Co12%
    Flexural strength
    4300N/mm2
    Grain size 0.5um
    Co10%
    Flexural strength 4300N/mm2

    Super Coating

    Coating Classifying and Advantage
    Item
    Coating Type
    AlTin
    TiAlN
    TiSiN
    Nano
    Characteristic
    Hardness(HV)
    3300
    2800
    4300
    42(GPA)
    Thickness(UM)
    2.5-3
    2.5-3
    3
    3
    Oxidation Temp.(°C)
    900
    800
    1000
    1200
    Friction Coefficient
    0.35
    0.3
    0.25
    0.4
    Color
    Black
    Bronze
    Bronze and gold
    Blue
    Advantages
    High heat stability
    Normally cutting
    Suitable for heavy cutting, and high hardness cutting
    For high precision cutting
    Suitable for high speed, dry cutting
    Suitable for cutting mould steel, stainless steel
    Suitable for high hardness cutting, mould steel processing
    Most suitable for carbide cutting tools, turning insert
    Products Show

    Product Specifications
    CDCLSD
    (cutting diameter)(cutting length )(shank diameter)(total length )
    12450
    1.53450
    24450
    2.55450
    36450
    48450
    510650
    612650
    816860
    10201075
    12241275
    142814100
    163216100

    The other sizes, we can produce for you based on your requirements.
