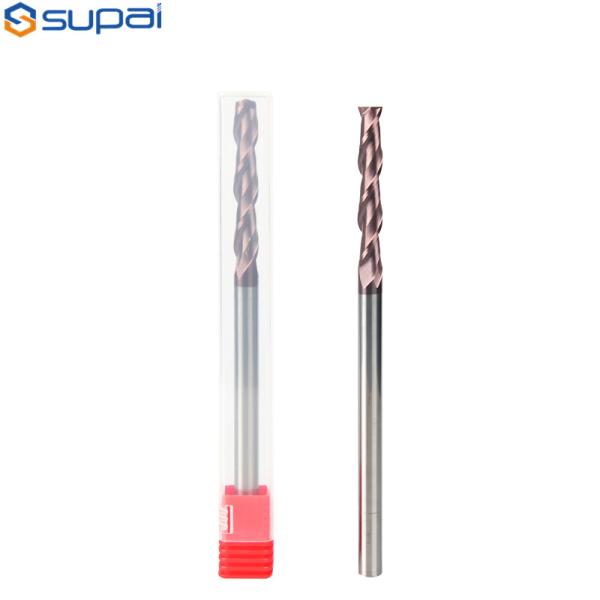

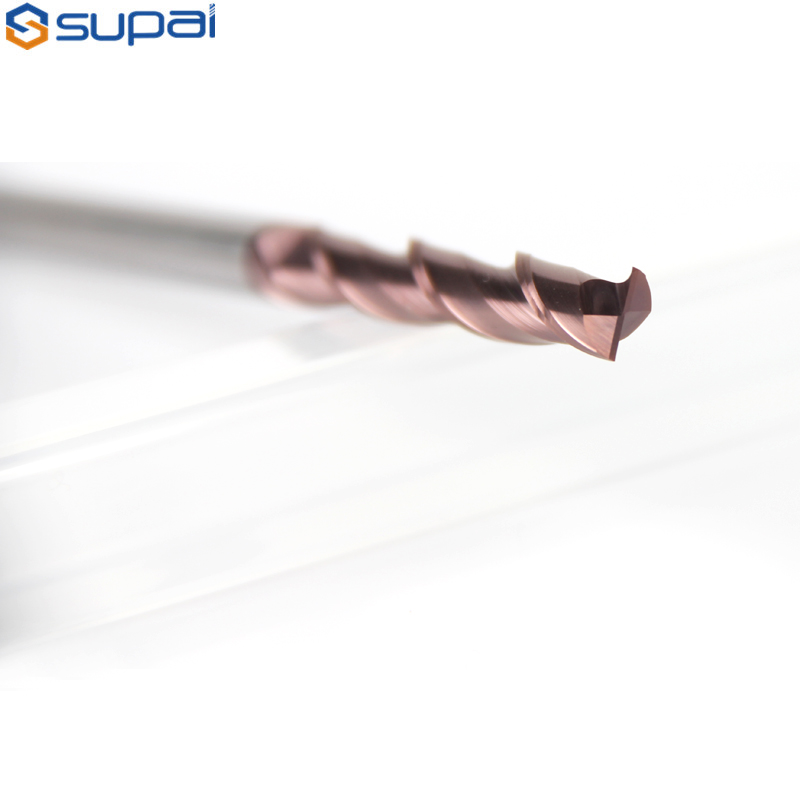

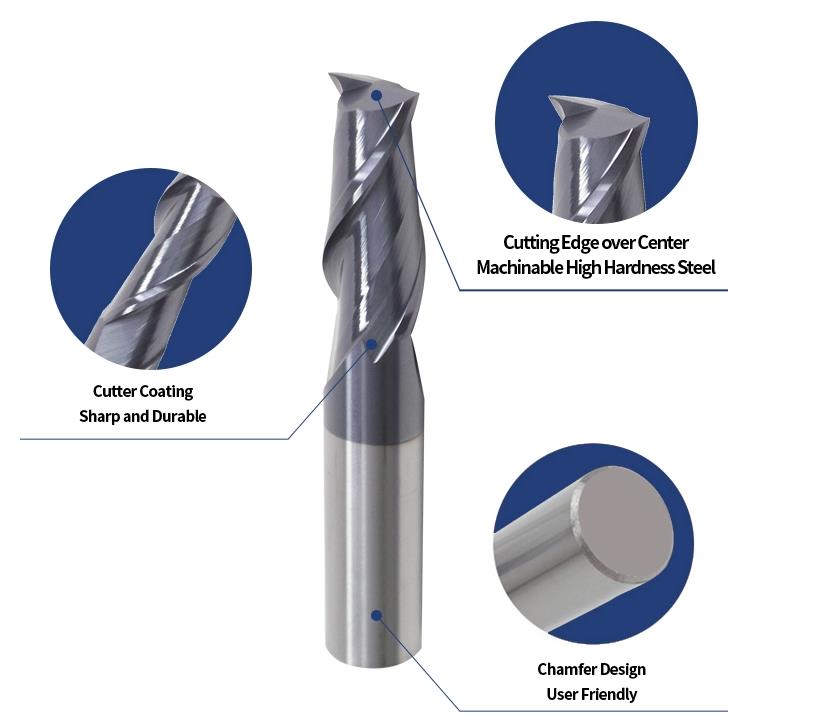

    Flat Carbide Square End Mill ±0.01 Tolerance 35° Helix Angle For High Precision Cutting

    Ask Lasest Price
    Brand Name : SUPAL
    Payment Terms : T/T
    Supply Ability : 10000000PCS
    Delivery Time : 7-15Days
    Model Number : OEM
    Price : To be negotiated
    • Product Details
    • Company Profile

    Flat Carbide Square End Mill ±0.01 Tolerance 35° Helix Angle For High Precision Cutting


    Solid Carbide of 2 Flutes Flat Carbide End Mills


    Product Name
    Solid Carbide of 2 Flutes Flat Carbide End Mills
    Workpiece Material
    Carbon Steel/ Alloy Steel/Grey Cast Iron/ Nodular Cast Iron
    Application
    Side Face/ Step Shoulder/ Straight Slot /Deep Slot
    Sample
    Yes
    Type
    Flattened
    Stock
    Yes
    Raw Material
    YL10.2
    OEM/ODM
    Yes
    Grain of Powder
    0.5μm
    Tolerance
    ±0.01
    Helix Angle
    35°
    Flutes
    2F
    Coating
    AlTiN
    HRC
    HRC45
    Coating Color
    Black

    Super Raw Material

    Item Grade
    HRC45
    (YG10X )
    HRC55
    (YL10.2 & WF25)
    HRC60
    (Germany K44 &K40)
    HRC65
    ( H10F)
    Details
    Grain size 0.7um
    Co10%
    Flexural strength
    3320N/mm2
    Grain size 0.6um
    Co10%
    Flexural strength 4000N/mm2
    Grain size 0.5um
    Co12%
    Flexural strength
    4300N/mm2
    Grain size 0.5um
    Co10%
    Flexural strength 4300N/mm2

    Super Coating

    Coating Classifying and Advantage
    Item
    Coating Type
    AlTin
    TiAlN
    TiSiN
    Naco
    Characteristic
    Hardness(HV)
    3300
    2800
    4300
    42(GPA)
    Thickness(UM)
    2.5-3
    2.5-3
    3
    3
    Oxidation Temp.(°C)
    900
    800
    1000
    1200
    Friction Coefficient
    0.35
    0.3
    0.25
    0.4
    Color
    Black
    Bronze
    Bronze and gold
    Blue
    Advantages
    High heat stability
    Normally cutting
    Suitable for heavy cutting, and high hardness cutting
    For high precision cutting
    Suitable for high speed, dry cutting
    Suitable for cutting mould steel, stainless
    steel
    Suitable for high hardness cutting, mould steel processing
    Most suitable for carbide cutting tools, turning insert
