Long Tungsten Solid Carbide Ball Nose End Mill Cnc Round Spherical Milling Cutter Cutting Tools

Supal (Changzhou) Precision Tools Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Long Tungsten Solid Carbide Ball Nose End Mill Cnc Round Spherical Milling Cutter Cutting Tools from wholesalers

    Buy cheap Long Tungsten Solid Carbide Ball Nose End Mill Cnc Round Spherical Milling Cutter Cutting Tools from wholesalers
    • Buy cheap Long Tungsten Solid Carbide Ball Nose End Mill Cnc Round Spherical Milling Cutter Cutting Tools from wholesalers
    • Buy cheap Long Tungsten Solid Carbide Ball Nose End Mill Cnc Round Spherical Milling Cutter Cutting Tools from wholesalers
    • Buy cheap Long Tungsten Solid Carbide Ball Nose End Mill Cnc Round Spherical Milling Cutter Cutting Tools from wholesalers

    Long Tungsten Solid Carbide Ball Nose End Mill Cnc Round Spherical Milling Cutter Cutting Tools

    Ask Lasest Price
    Brand Name : SUPAL
    Payment Terms : T/T
    Supply Ability : 10000000PCS
    Delivery Time : 7-15Days
    Price : To be negotiated
    Model Number : OEM
    • Product Details
    • Company Profile

    Long Tungsten Solid Carbide Ball Nose End Mill Cnc Round Spherical Milling Cutter Cutting Tools

    HRC55 Tungsten End Mill Cutter Ball Nose

    Product Name
    HRC55 Tungsten End Mill Cutter Ball Nose
    Workpiece Material
    Carbon Steel/ Alloy Steel/ Cast Iron/Stainless steel
    Application
    Profile Machining/ Cavity Machining/ Ball Nose Slot Machining
    Sample
    Yes
    Type
    Ball Nose
    Stock
    Yes
    Raw Material
    K30
    OEM/ODM
    Yes
    Grain of Powder
    0.5μm
    Tolerance
    ±0.01
    Helix Angle
    35°
    Flutes
    2F
    Coating
    AlCrSiN
    HRC
    HRC55
    Coating Color
    Bronze

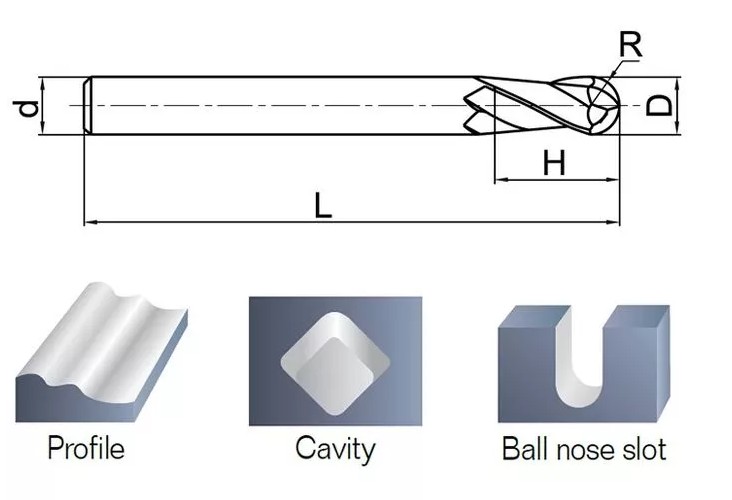

    Ball end mills, also known as ball nose end mills, are used formilling contoured surfaces, slotting and pocketing.

    A ball end mill is constructed of a round cutting edge and used in the machining of dies and molds.

    Standard Carbide End Mill Specification
    (HRC:45/50/65)
    DiameterFlute LengthOverall LengthShank Diameter
    12.5504
    25504
    410504
    512.5506
    615506
    820608
    10257510
    12307512
    14358014
    184510018
    204510020

    What is Carbide ?

    Carbide is one of the hardest material to be found and has amazing wear resistance capabilities that make it ideal for the many tasks it performs .Not only is it very hard ,but it is able to withstand a great deal of abrasion,which enables the carbide cutting tools to outperform other material .all our end mills are produced from solid carbide material .


    Machining operation of Tungsten Carbide Ball nose End mill cutter bits:

    Profile machining

    Slot machining

    Deep slot machining


    Description of Tungsten carbide end mills/Milling cutter :

    Flute type :
    2-flute flattened end mills3-flute flattened end mills4-flute flattened end mills6-flute flattened end mills
    2-flute ball nose end mills
    2-flute radius end mills4-flute radius end mills
    Helix angle:35° 45°
    Tip format :Tip protection typeTip type
    Super CoatedNaNo TiAINTiANAITiN
