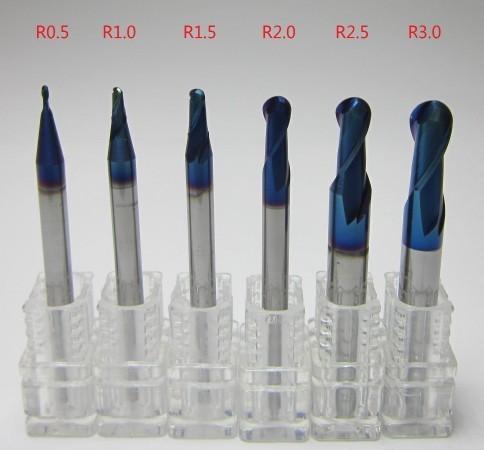

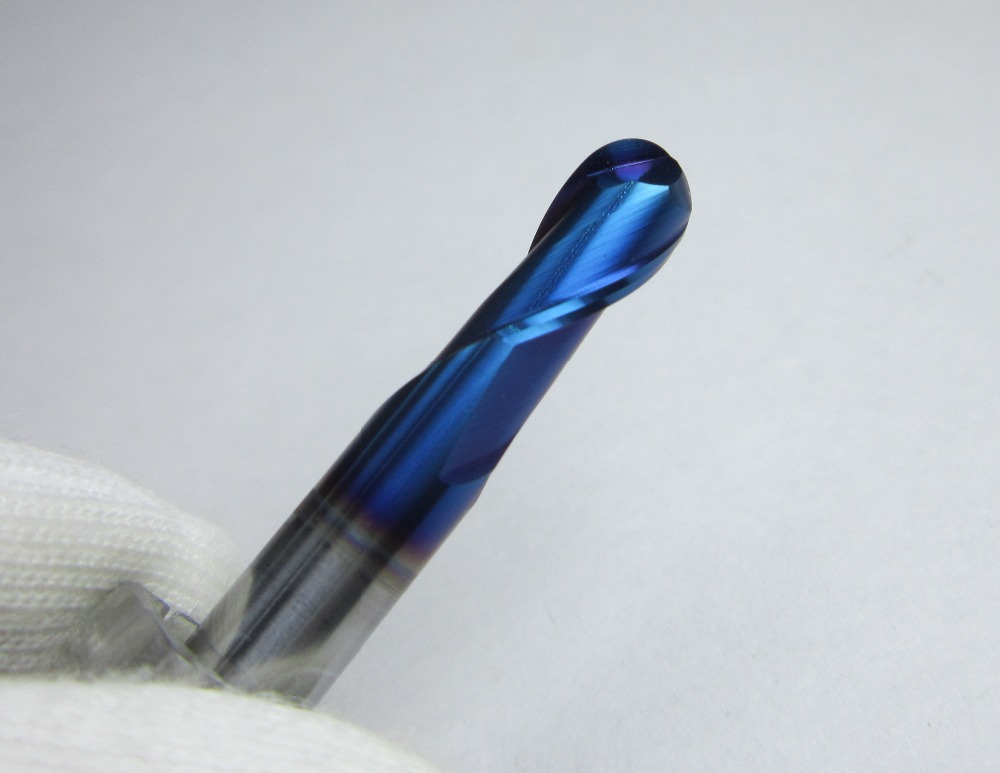

Tungsten Carbide 2/4 Flutes Ball Nose End Mill With Nano Coating
Excellent Workpiece Finishes
Tungsten Carbide end mills are a type of milling cutter, a cutting
tool used in industrial milling applications. We offer a wide
variety of Tungsten Carbide cutting tools including end mills and
bore machining products. All products are sinter-HIP processed.
This process ensures complete metallurgical integrity needed in
high-performance end mill.
Milling cutters/end mills are broadly divided into:
1. Square end mill: finish milling or rough milling, milling
grooves, removing a large number of blanks, small-area horizontal
plane or contour finishing;
2. Ball end milling cutter/end mill: semi-finishing and finishing
of curved surface; the small blade can finish milling small chamfer
of steep surface/straight wall.
Two flute end mills are center cutting and designed for plunging,
slotting, contouring, and increased chip clearance at higher feed
rates in heavy peripheral cuts.
Ball end minimizes tool deflection and increases productivity when
contouring in deep cavities.
3, Radius end mill: rough milling when the surface change is small,
the small concave area is less, and in relatively flat area.
4. Taper end mills: with chamfer, it can be used for rough milling
to remove a large number of blanks, and it can also be fine-milled
with a small chamfer on the flat surface (relative to the steep
surface).
5. Drill
6. Thread mill
7. Formed cutter
| Super Raw Material |
| Item Grade | HRC45 | HRC55 | HRC60 | HRC65 |
| (YG10X ) | (YL10.2 & WF25) | (Germany K44 &K40) | ( H10F) |
| Details | Grain size 0.7um | Grain size 0.6um | Grain size 0.5um | Grain size 0.5um |
| Co10% | Co10% | Co12% | Co10% |
| Flexural strength | Flexural strength 4000N/mm2 | Flexural strength | Flexural strength 4300N/mm2 |
| 3320N/mm2 | | 4300N/mm2 | |
| Super Coating |
| Coating Classifying and Advantage |
| Item | Coating Type | AlTin | TiAlN | TiSiN | Naco |
| Characteristic | Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 |
| Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 |
| Color | Black | Dark Purple | Copper | Blue |
| Advantages | High heat stability | Normally cutting | Suitable for heavy cutting, and high hardness cutting | For high precision cutting |
| Suitable for high speed, dry cutting | | Suitable for cutting mould steel, stainless | Suitable for high hardness cutting, mould steel processing |
| Most suitable for carbide cutting tools, turning insert | | | |
Features:
1. The use of new ultra-fine particles of tungsten steel material,
with high wear resistance and strength, exclusive high-speed
cutting applications for all-round milling cutter.
2. The blade is covered with a coating, the high-speed roughing of
the hot material can be finely processed to reduce the number of
tool changes.
Applications
1. Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould
steel, Die steel, Stainless steel, Plastic, Arcylic, etc.
2. Applicated for Aerospace, transportation, Medical equipment,
military manufacturing, mould development, apparatus and
instrument, etc
2 - FLUTE
